The Story
The championship proven Renthal Fatbar continues to set the industry standard in an unbraced tapered MX handlebar. The oversized (1-1/8in | 28.6mm) clamping diameter uses computer aided profiling tapering down to (7/8in | 22.2mm) to accept standard controls. Engineered from Renthal's exclusive 7010 T6 aluminium specially formulated to reduce vibration and provide superior strength.

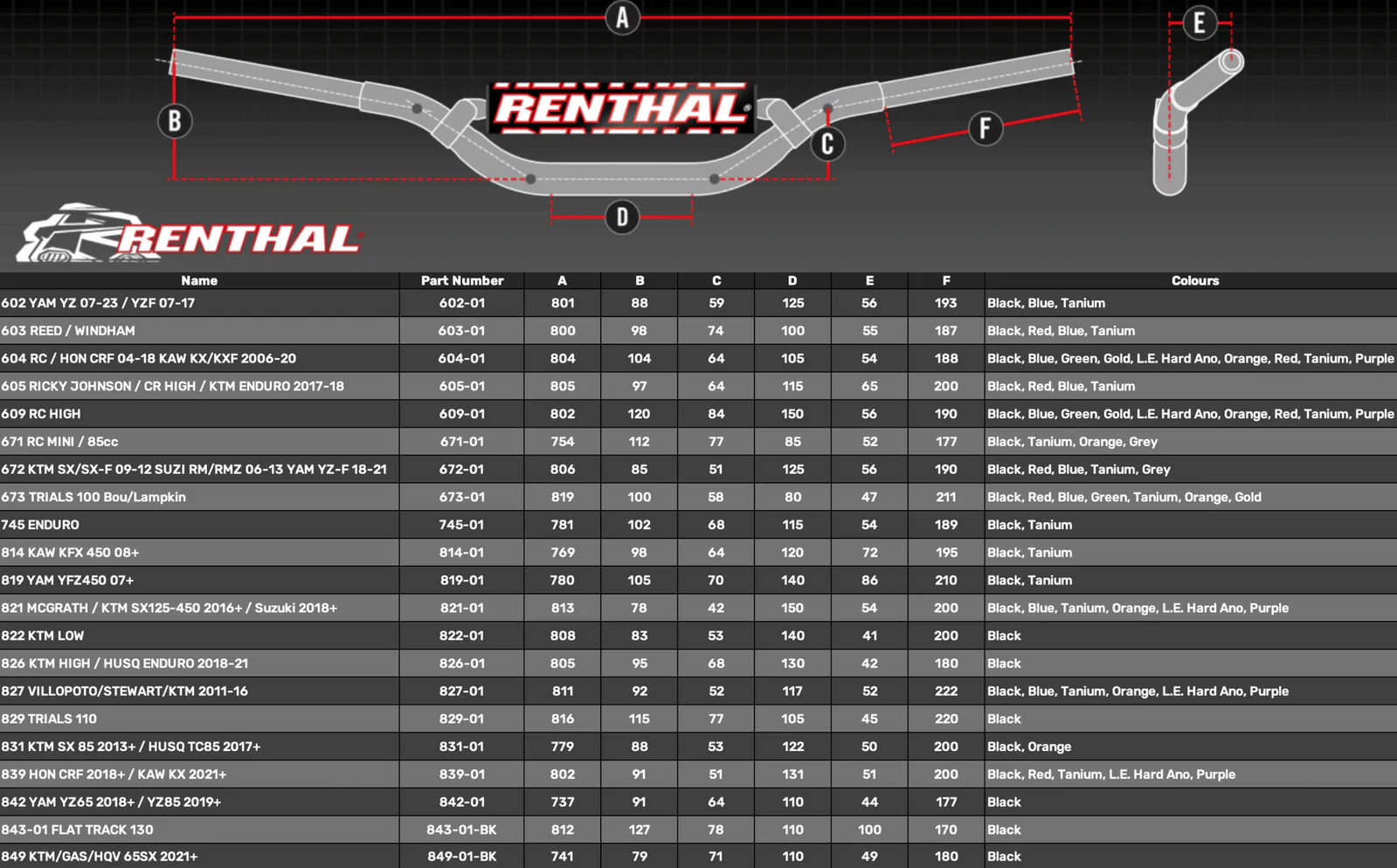

| Width / Dimension A | 811mm |
Height / Dimension B |
92mm |
Rise / Dimension C |
52mm |
Clamping Width / Dimension D |
117mm |
Sweep / Dimension E |
52mm |
Control Length / Dimension F |
222mm |
| Mounting Clamp Diameter | 28.6mm / 1+1/8" |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
The championship proven Renthal Fatbar continues to set the industry standard in an unbraced tapered MX handlebar. The oversized (1-1/8in | 28.6mm) clamping diameter uses computer aided profiling tapering down to (7/8in | 22.2mm) to accept standard controls. Engineered from Renthal's exclusive 7010 T6 aluminium specially formulated to reduce vibration and provide superior strength.
| Width / Dimension A | 811mm |
Height / Dimension B |
92mm |
Rise / Dimension C |
52mm |
Clamping Width / Dimension D |
117mm |
Sweep / Dimension E |
52mm |
Control Length / Dimension F |
222mm |
| Mounting Clamp Diameter | 28.6mm / 1+1/8" |
